With the Tour visualisation module, you can manage the planning and execution of your tours.
How to access Tours Visualisation

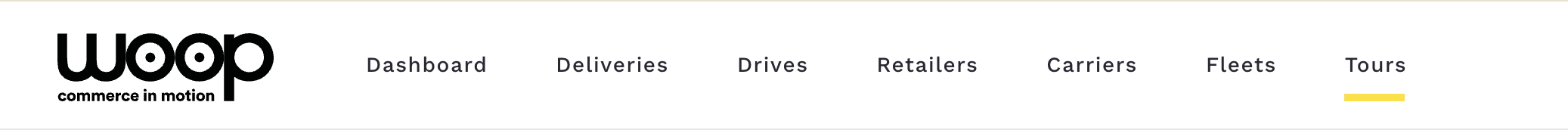

Tours visualisation can be accessed from the main menu via the "Tours" tab.
Daily View
General Overview
The daily view consists of:
- A navigation bar allowing you to select the date, filter your routes, or restart an optimization.
- A "List" view of the day’s routes.
- A "Map" view representing the routes.
Date Selection
To view the routes, select the date for which you want to see them.
Optimize
If the day has not yet been optimized, there will be no composed routes.
You can manually start optimization by clicking on "Optimize " or by setting up automatic optimization (see the "Set Up a Sector" article).
If your routes are already composed but you want to restart optimization to include new deliveries or changes in configurations, you can do so using the "optimize" button.
Routes List
The route list informs you about the vehicles used and the trips to be made by each vehicle on that day. For each trip, the expected start time, the number of missions to be completed, and any anomalies reported by the agent, if applicable, are indicated.
A progress bar shows the percentage of completion for the route. This is based on the statuses updated by the agent via the mapo Driver application.
In the "Unplanned" tab, you can view the list of deliveries scheduled for the day but not assigned to a route by the optimization.
Map View
In the map view, you can see all the routes scheduled for the day, as well as the unscheduled deliveries. The routes are color-coded according to the vehicle's settings. Clicking on a stop will display a panel with essential information about the delivery and highlight the route to which it belongs.
Filters
Filters allow you to quickly find the delivery you are looking for by filtering by:
- Vehicle
- Statuses
- Order Number
- Anomalies
Route Details

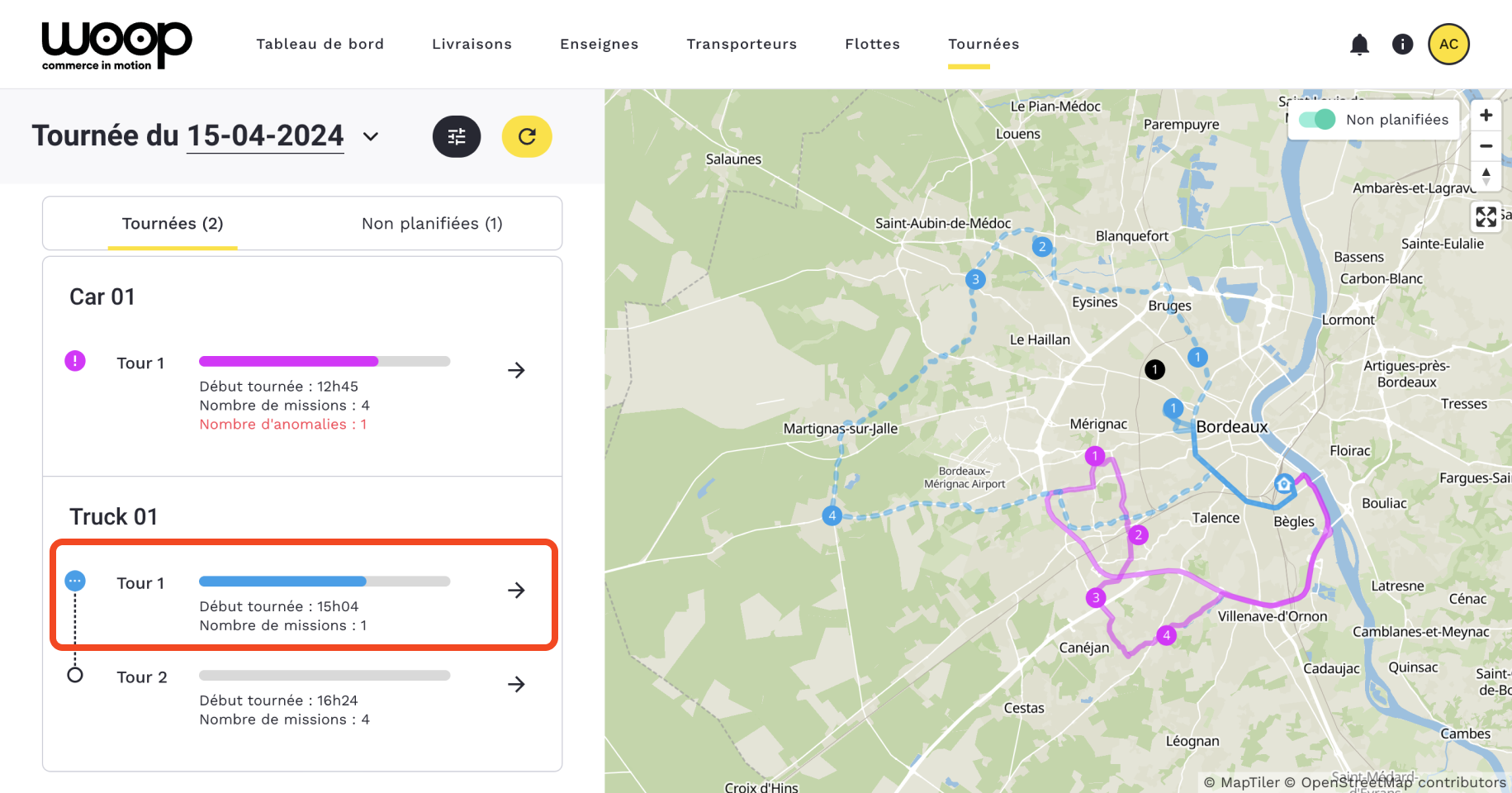

Clicking on a vehicle’s trip will take you to the route details.
General Overview
In the route details, you will find:
- Route statistics
- The list of stops
- A map of the route

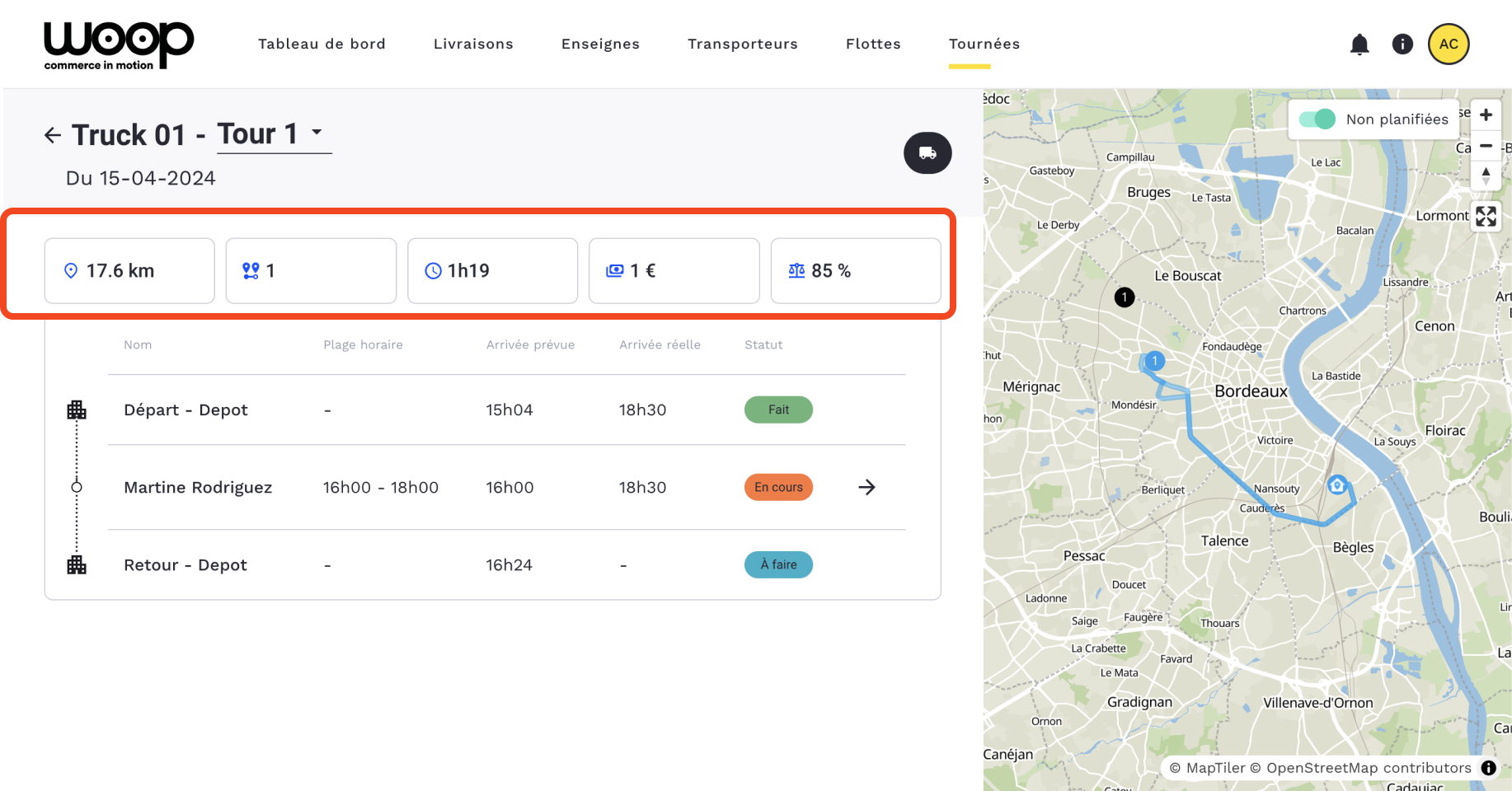

**Route Statistics**
Route statistics include:
- Number of kilometers traveled
- Number of customers delivered
- Total duration of the route
- Cost of the route (based on vehicle and agent costs)
- Load rate (maximum vehicle load achieved during the route)

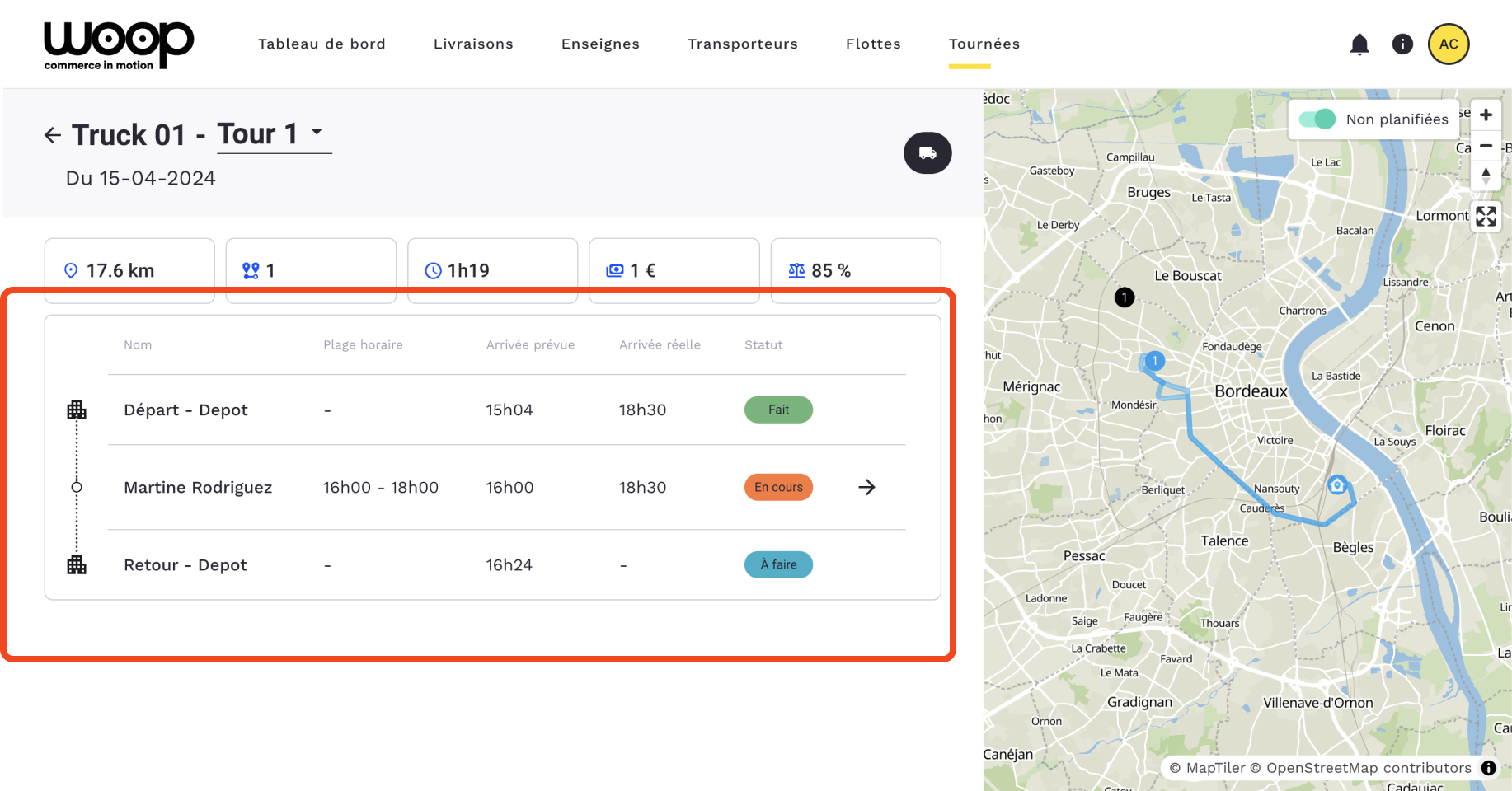

**List of Stops**
The list of stops shows the order of the route defined by the optimization, indicated by the customer’s name, time slot (delivery window chosen by the customer), and the expected time.
Once the agent has updated the statuses on their mobile app, the actual time (status update time) and delivery status are displayed.
**Delivery Details**

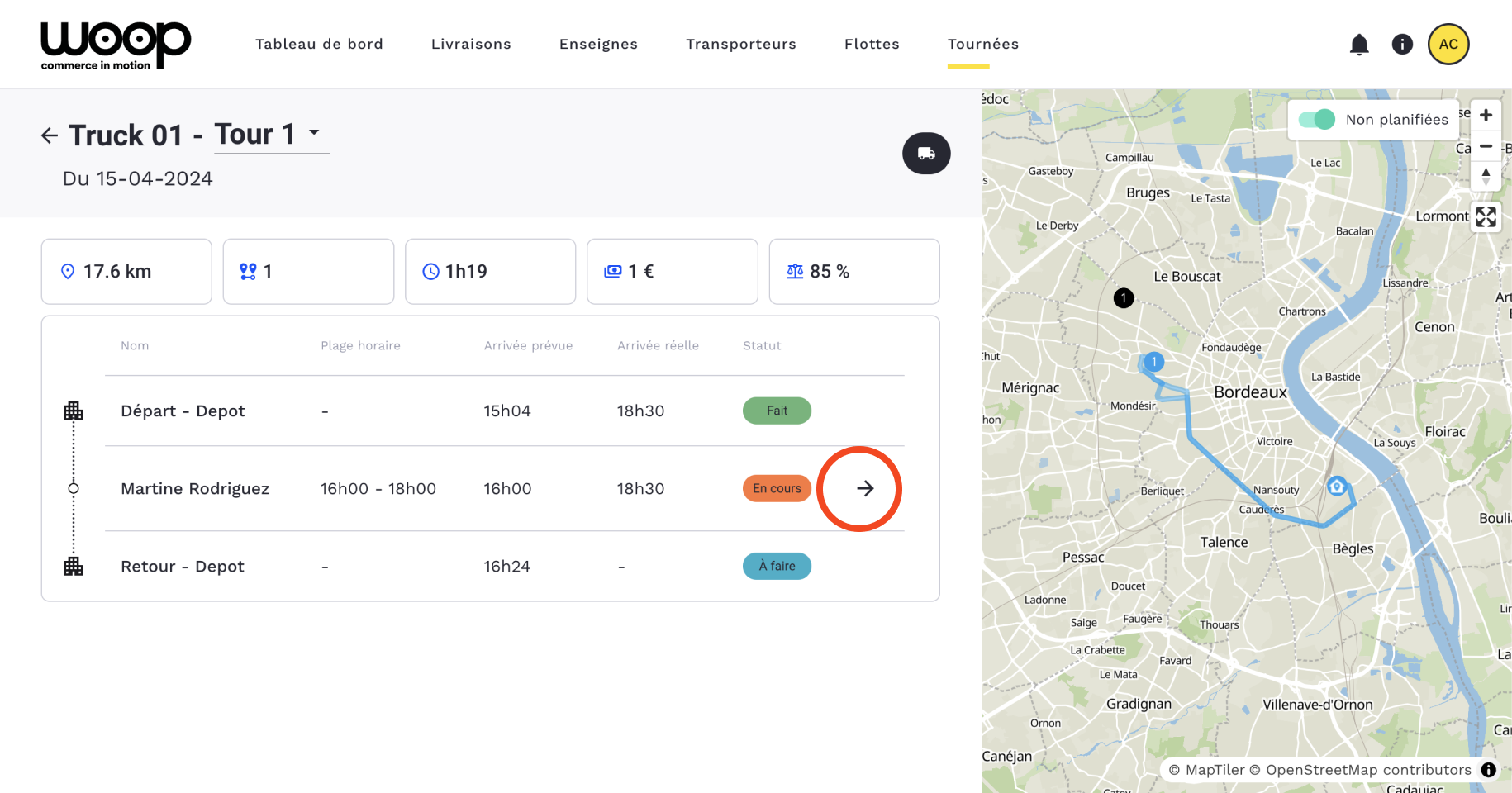

Clicking on the arrow accesses the delivery details.
**Vehicle and Agent Details**
Clicking the dedicated button accesses the details of the vehicle and the agent responsible for this route.
---
Let me know if you need further assistance or additional translations!
With route visualisation, manage the planning and execution of your routes.
Accessing Route Visualisation
Route visualisation is accessible from the main menu, via the "routes" tab.

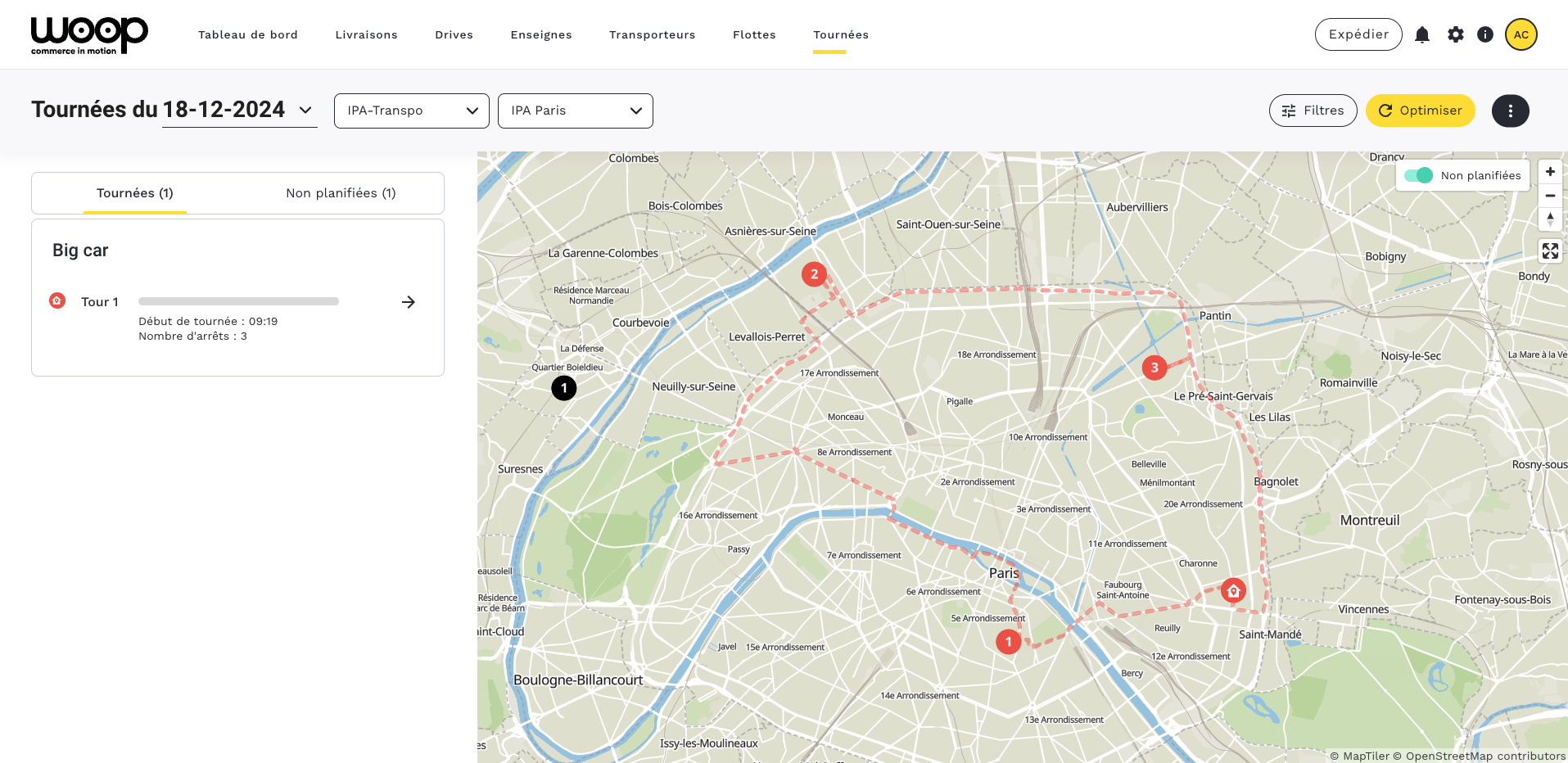

1 - Daily Visualisation
General Overview
The daily visualisation consists of:
- A navigation bar allowing you to:
- select the date
- filter my routes
- launch an optimisation
- other actions: itinerary sheet, send to mobile app, view statistics.
- A "list" view of the day's routes.
- A "map" view representing the routes.

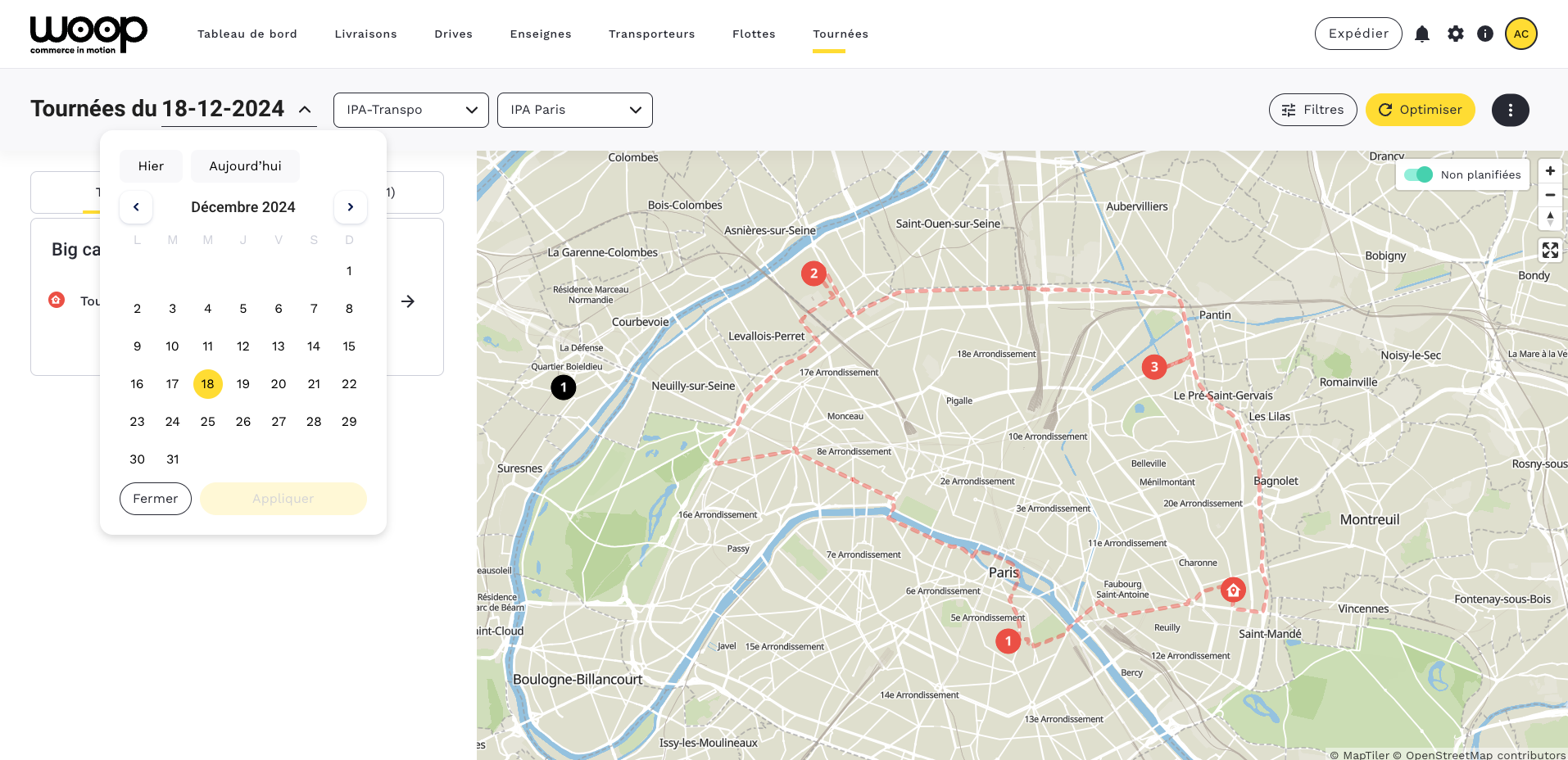

Date Selection
To display the routes, select the date for which you wish to view them.

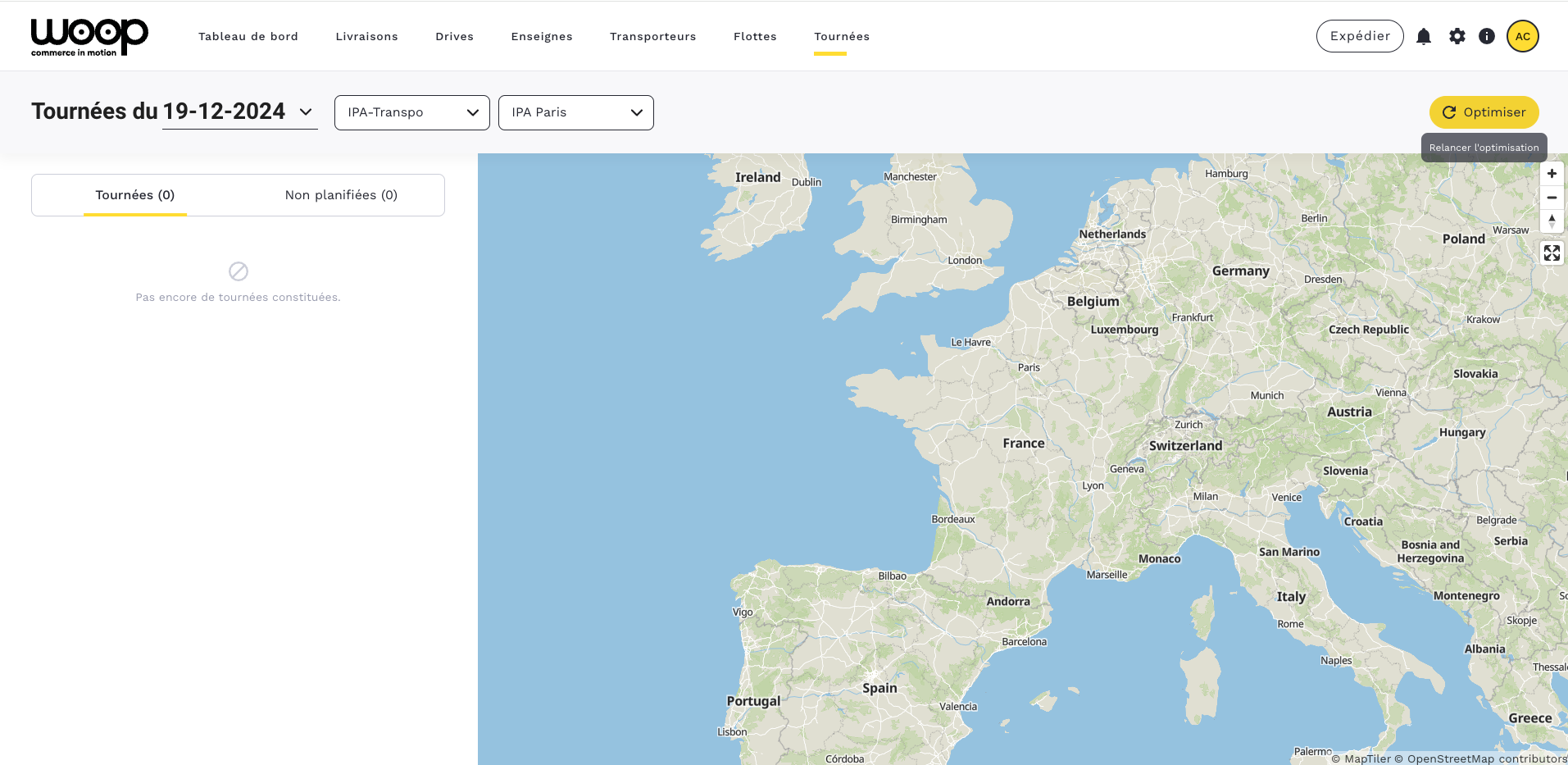

Launching an Optimisation
You can manually launch the optimisation by clicking on "optimise" or set up an automatic optimisation (see article "set up a sector").
If your routes are already composed but you wish to relaunch an optimisation, you can do so via the same "optimise" button.

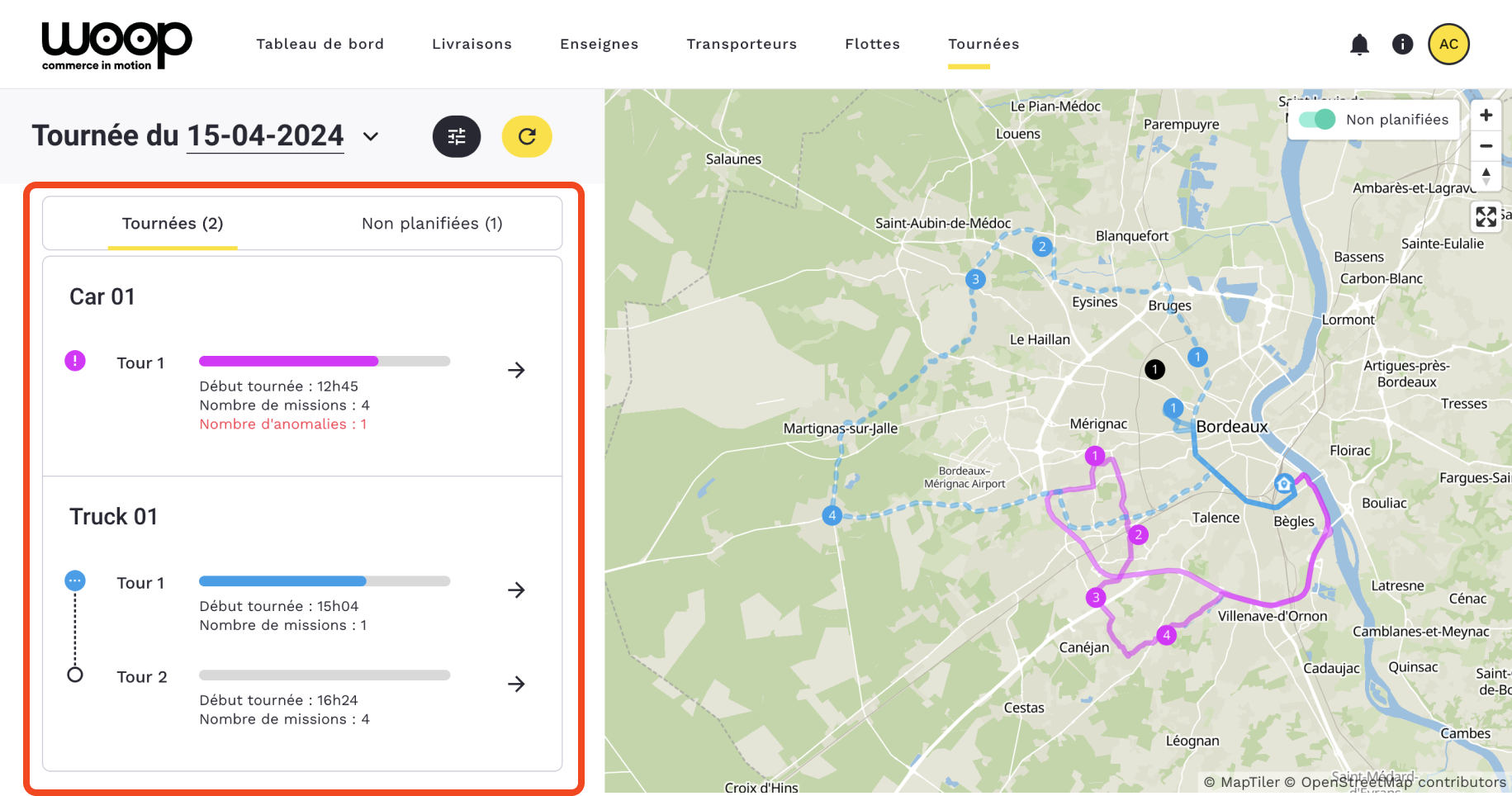

List of Routes
The list of routes informs you about the vehicles used, as well as the tours to be carried out by this vehicle on that day. For each tour, the scheduled start time of the route, the number of missions to be completed, and the number of anomalies reported by the agent, if any, are indicated.
A progress bar indicates the percentage of completion of the route. This is based on the statuses passed by the agent via their Mapo Driver application.

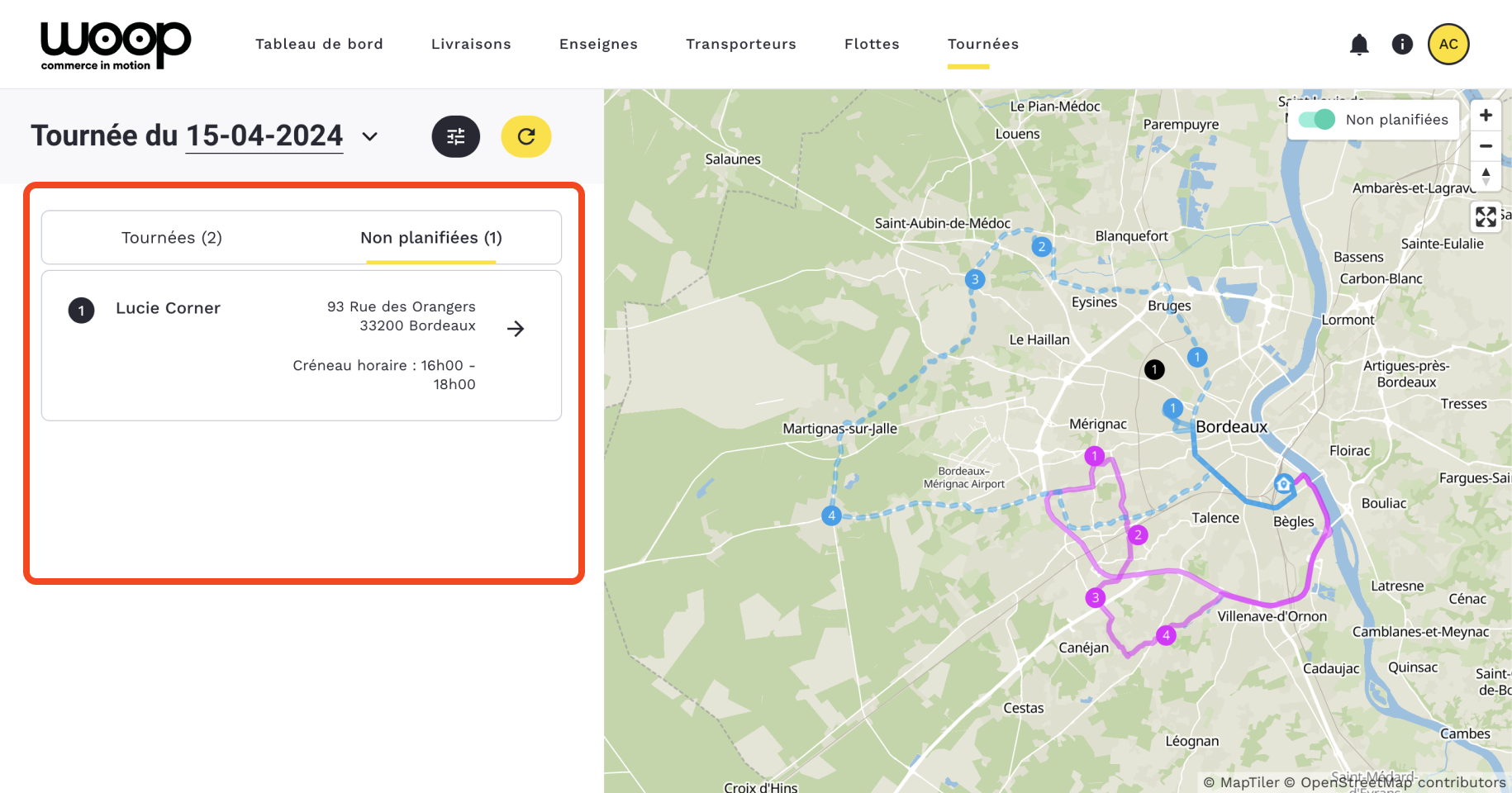

In the "unplanned" tab, you can view the list of deliveries scheduled for that day but not positioned in a route.

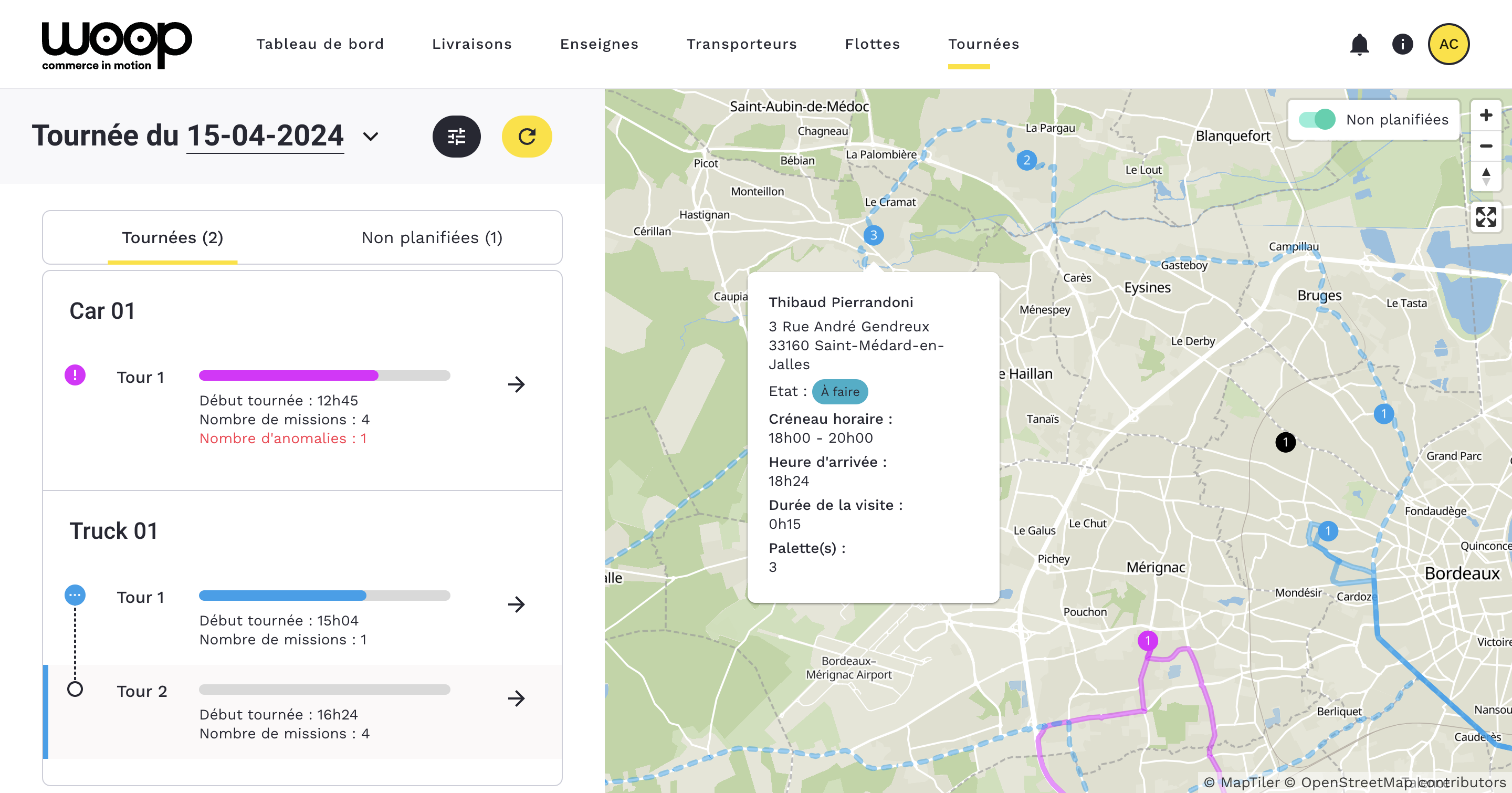

Map View
In the map view, find all the routes planned for that day, as well as unplanned deliveries. The itineraries follow the vehicle's set colour. Clicking on a stop displays a box with essential information about this delivery and highlights the route to which it belongs.

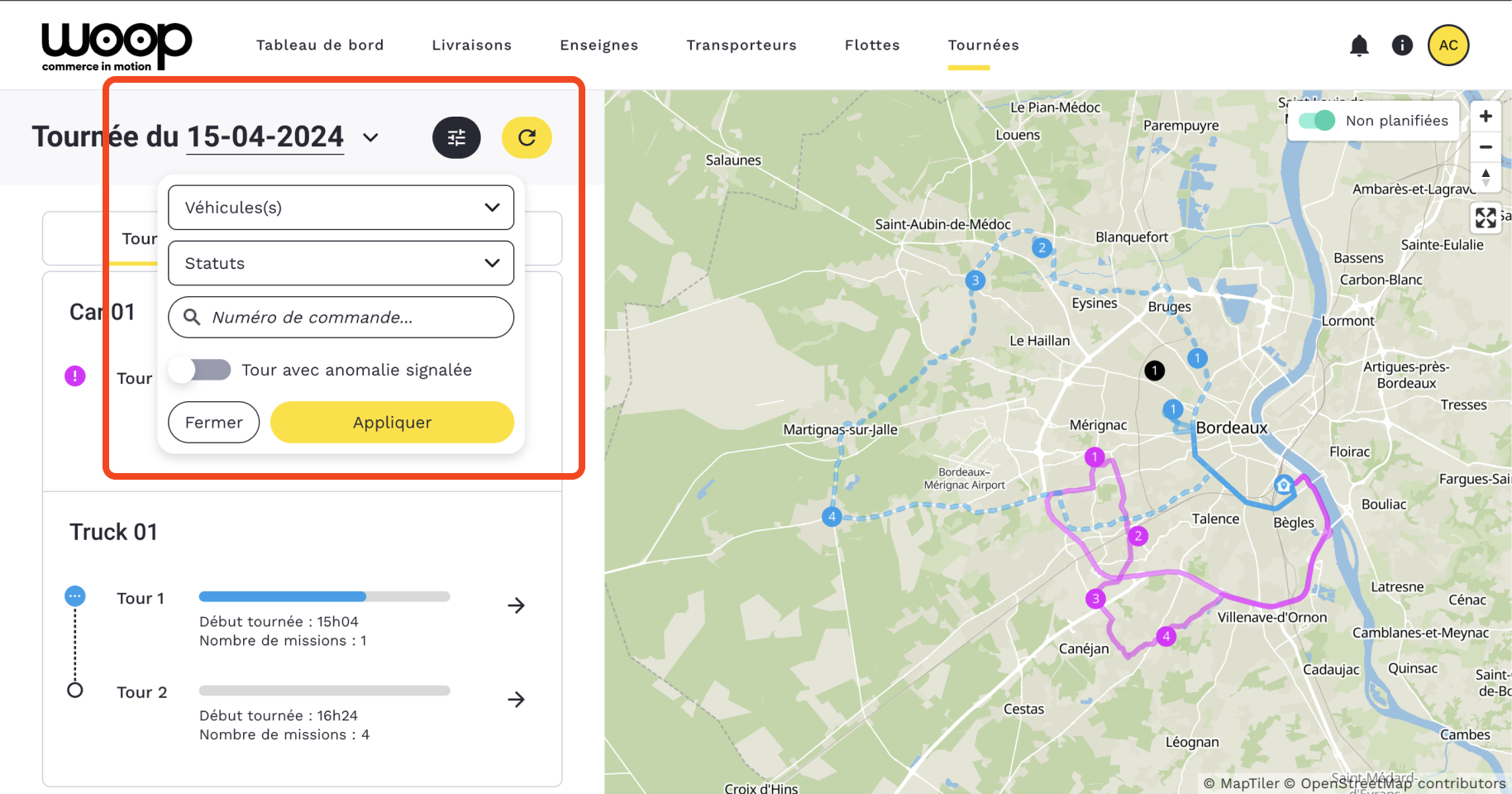

Filtering Routes
The filters allow you to quickly find the delivery you are looking for by allowing you to filter by:
- Vehicle
- Statuses
- Order number
- Anomalies

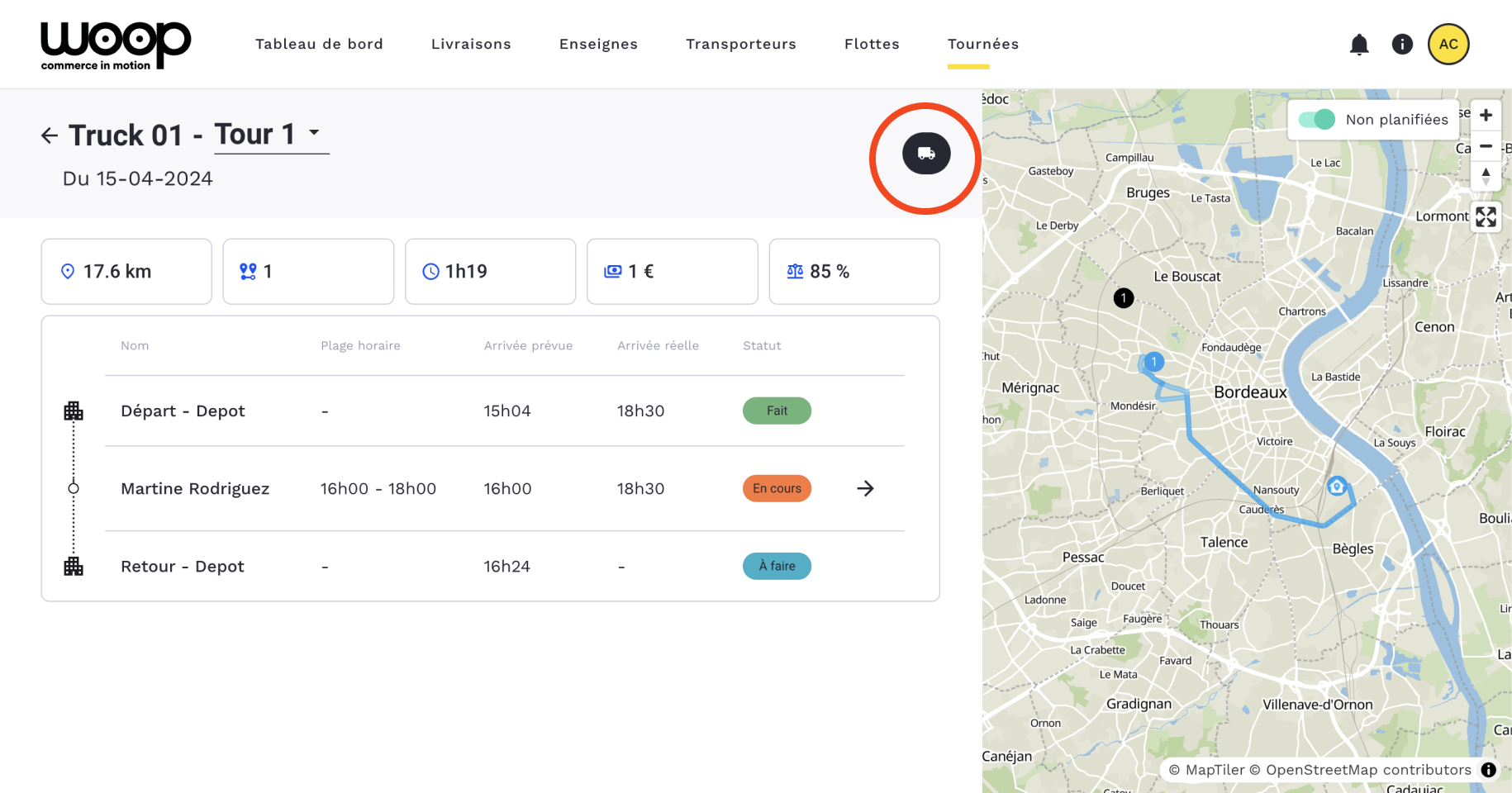

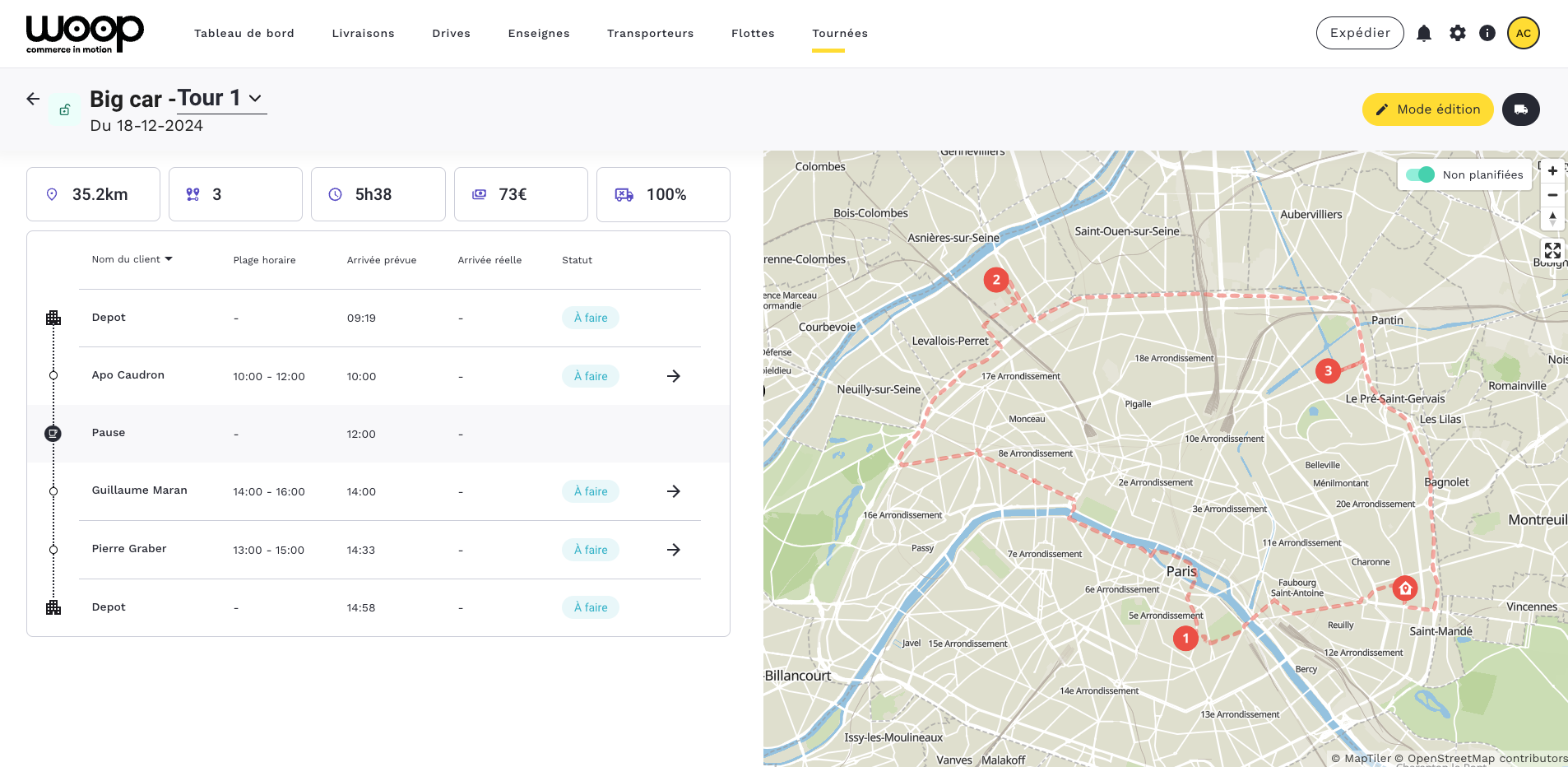

2 - Route Detail
Clicking on a vehicle's tour will take you to the route detail.
General Overview
In the route detail, you will find:
- Route statistics
- The list of stops
- A map of the route
Route Statistics
The route statistics are as follows:
- Number of kilometres travelled
- Number of customers delivered
- Total duration of the route
- Cost of the route (based on vehicle and agent costs)
- Fill rate (maximum vehicle fill reached during the route)
List of Stops
The list of stops follows the order of the route defined by the optimisation, indicated by the client's name, the time slot (delivery slot chosen by the client), and the scheduled time.
Once the statuses are passed by the agent on their mobile app, the actual time (time of status change) and the delivery status are displayed.
Delivery Detail
Clicking on the arrow takes you to the delivery detail.
Vehicle and Agent Detail
Clicking on the dedicated button takes you to the detail of the vehicle and the agent in charge of this route.

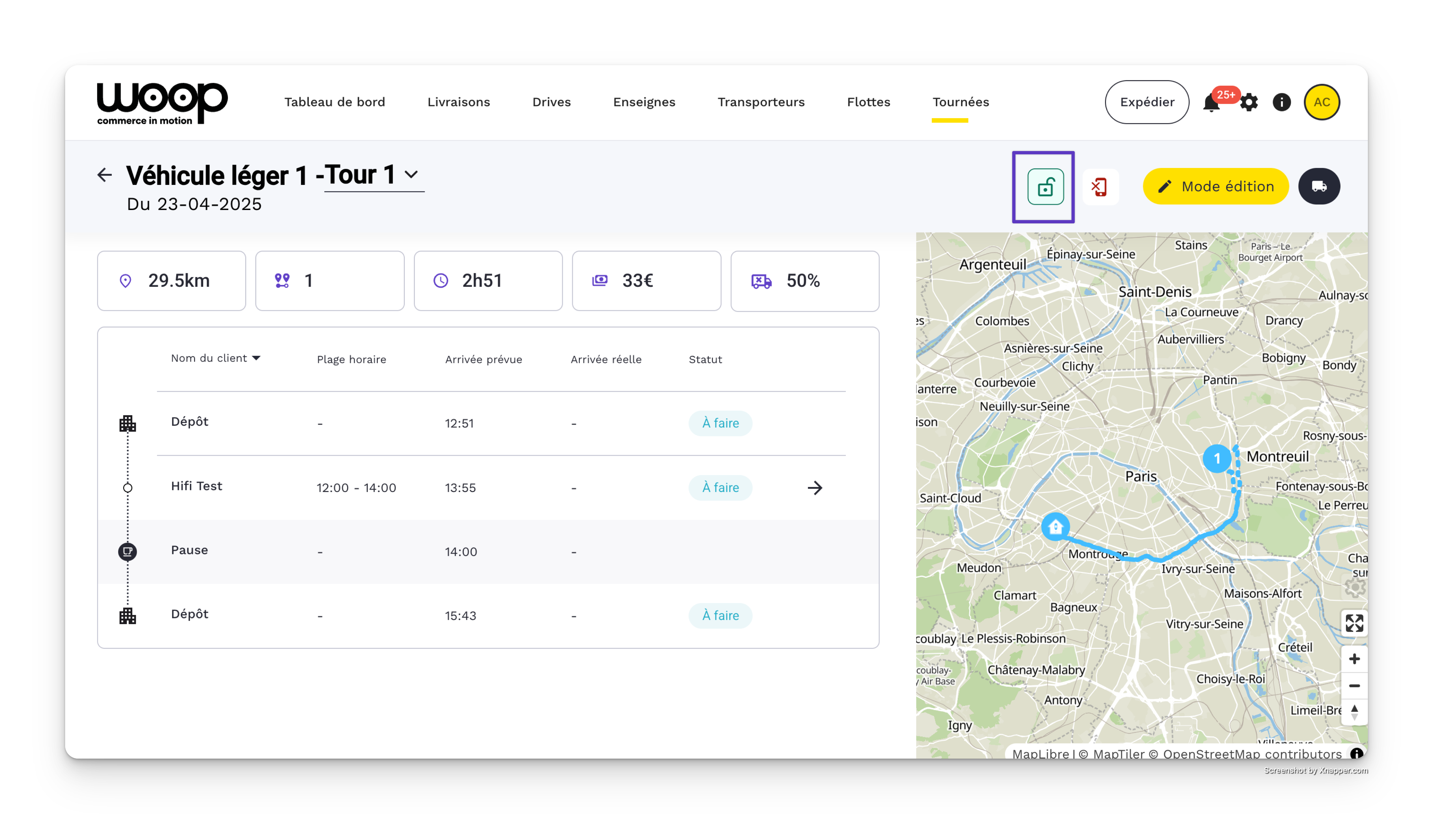

Route Locking
You can lock a route so that it is not modified by optimisation. A locked route cannot be altered and will not lose its statuses.
