Labels
Labels are words or groups of words that allow you to:
- Distinguish certain destinations in the list and on the routes displayed on the map.
- Create a link with a vehicle with a particular skill.
Create a label

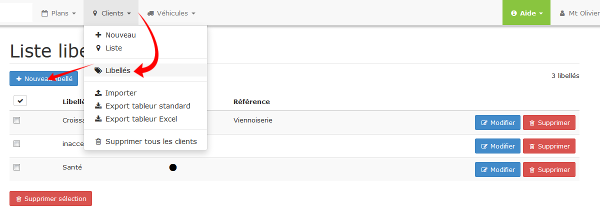

To access the "New Label" page, click on the "Destinations" menu. Select "Labels", then "New label".

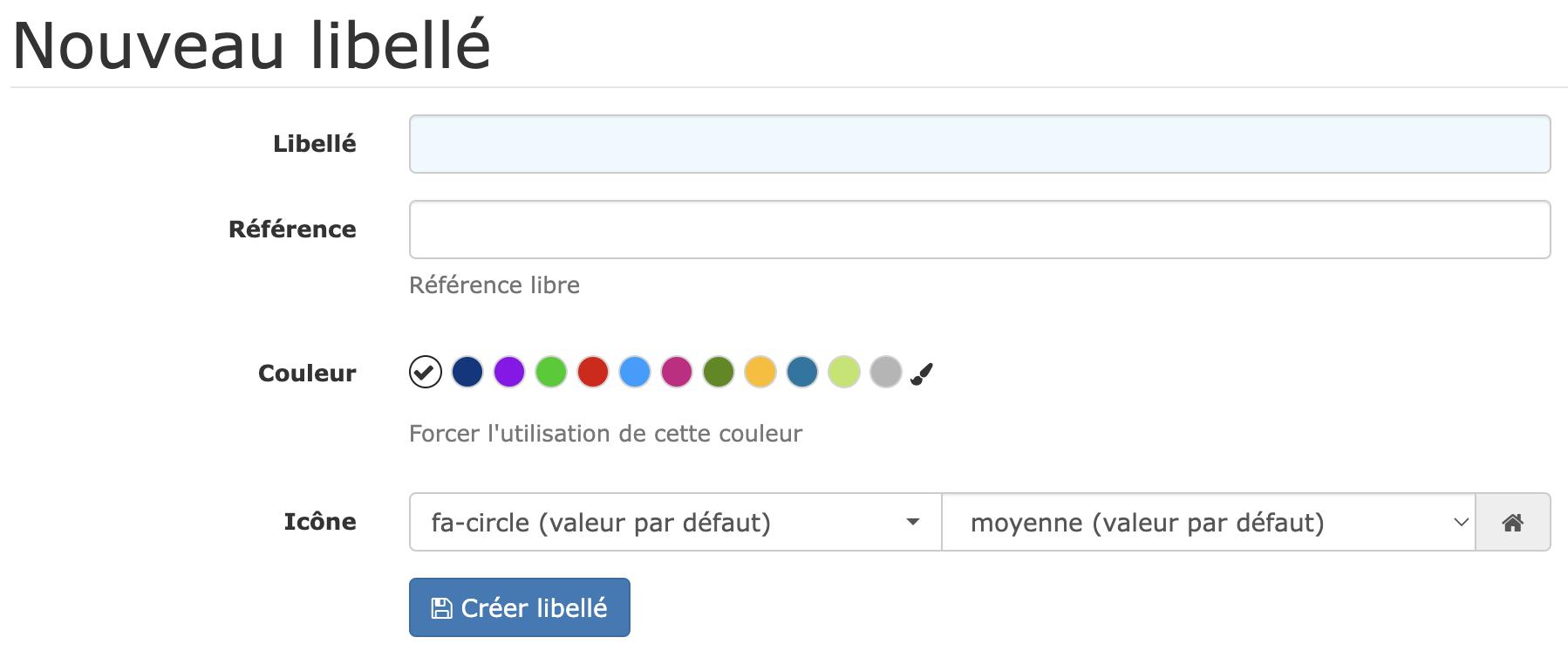

The following page will display:
- Label: This is the name of the label.
- Reference (optional): You can enter a reference if needed.
- Colour: Choose a colour for display on the map.
- Icon: Assign an icon and set its size for display on the map.
-
Confirm your entry by clicking the "Create Label" button
.
Note:
In the destinations list, you can add label(s) to a destination directly in the table by clicking in the label cell of the relevant destination.
Note:
When creating a new destination, clicking in the label cell will show the existing labels. Select one or more labels to assign them to the destination.
Note:
When creating a route plan, select one or more labels to filter the Destinations, display only those Destinations, and schedule them in a route. If label "A", for example, is selected, only destinations with label "A" will be displayed on the plan. If several labels are selected, for example "A" and "B", only destinations with both labels "A" and "B" will appear on the plan (this excludes destinations with only label A or only label B).
Note:
Labels can be created when making a new Plan or Destination, or when editing a Destination or Plan.
Edit a label
From the Labels list, "Destinations" => "Labels", click the "Edit" button .

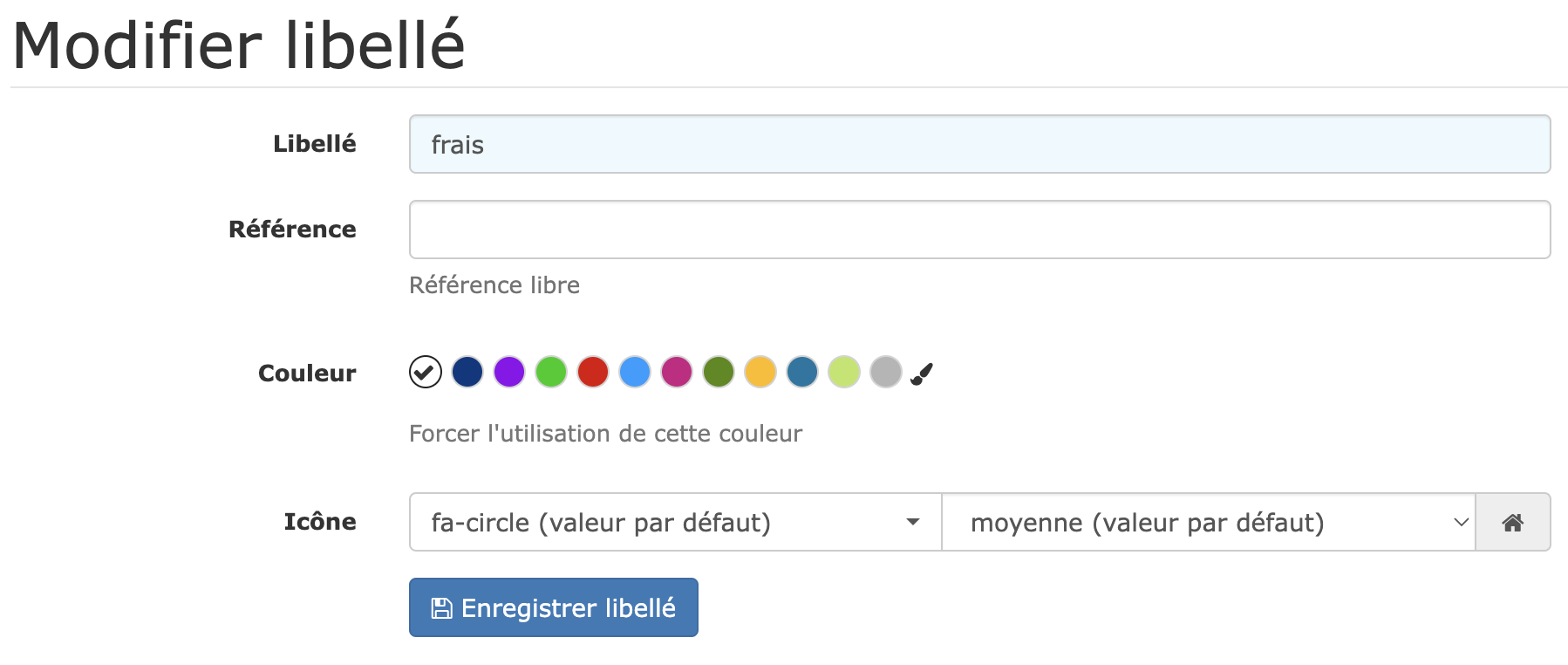

The following page will display:
Edit the desired item(s):
- Label: This is the name of the label.
- Reference (optional): You can enter a reference if needed.
- Colour: Choose a colour for display on the map.
- Icon: Assign an icon and set its size for display on the map.
-
Confirm your entry by clicking the "Create Label" button
.
Delete a label
On the label list page, delete a label by clicking the "Delete" button on the row of the label you want to remove.
To delete several labels at once, tick the box to the left of the rows for the labels you want to delete. Click the "Delete selection" button .
To delete all labels, click the button to select all labels. Then click the "Delete selection" button
.
Filter the label list
Above the table listing all the labels, on the right, there is a field to filter the data in the table. As soon as a character (or string of characters) is entered in the field, the filter is applied and only the data containing that character (or string) will be displayed in the table.
